Product Name：Low Ripple DC Boost Module
Typical Applications：
Data and image transmission; 8.1-25.8V lithium battery power supply system.
Input Voltage 8.4-12.6V 11.2-16.8V 14.0-21.0V 16.8-25.2V
Maximum Current 28V@6.0A 28V@8.0A 28V@10.0A 28V@12.0A
Efficiency >=93.0% >=94.0% >=95.0% >=96.0%
Ripple Noise <=50mVp-p <=50mVp-p <=50mVp-p <=50mVp-p

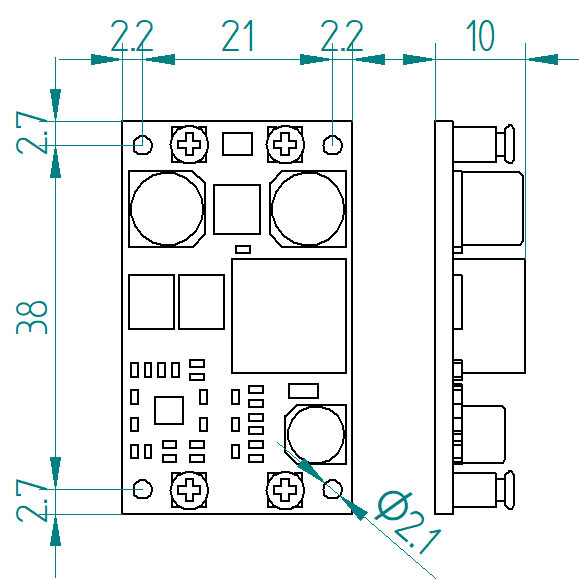

Outline dimension 43.4x25.4x10.0mm Outline Drawing Click
