Low Ripple DC Boost Module 8.4V-11A

Product Name：Low Ripple DC Boost Module

Typical Applications：

Data and image transmission; 8.1-25.8V lithium battery power supply system.

Input Voltage               8.4-12.6V               11.2-16.8V               14.0-21.0V               16.8-25.2V

Maximum Current       28V@3.0A              28V@4.0A                28V@5.0A              28V@6.0A

Efficiency                     >=92.0%                >=93.0%                  >=94.0%                 >=95.0%

Ripple Noise                <50mVp-p             <50mVp-p               <50mVp-p              <50mVp-p

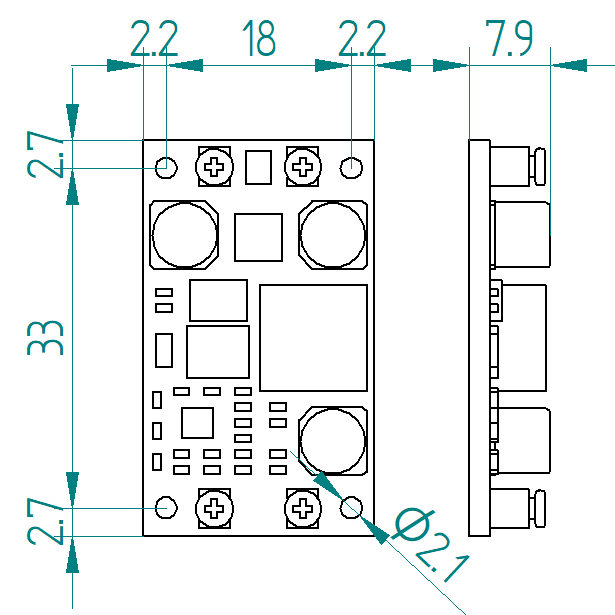

Outline dimension       38.4x22.4x7.8mm                                   Outline Drawing     Click
