Low Ripple DC Boost Module 8.4V-45A

Product Name：Low Ripple DC Boost Module

Typical Applications：

Data and image transmission; 8.1-25.8V lithium battery power supply system.

Input Voltage               8.4-12.6V               11.2-16.8V               14.0-21.0V               16.8-25.2V

Maximum Current       28V@12.0A            28V@16.0A              28V@20.0A             28V@24.0A

Efficiency                     >=92.0%                >=93.0%                  >=94.0%                 >=95.0%

Ripple Noise                <=60mVp-p          <=60mVp-p             <=60mVp-p            <=60mVp-p

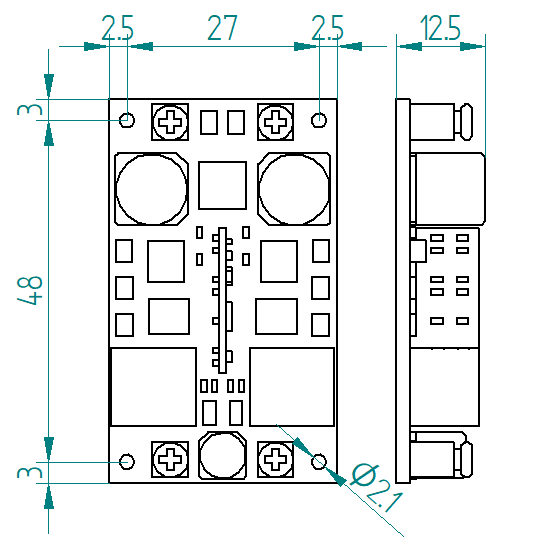

Outline dimension       54.0x32.0x12.5mm                                 Outline Drawing      Click
